With the abundant practical experience since 1994, Bonjay developed comprehensive KIOSK System Infrastructure which is convenient for backend user to manage KIOSK remotely.
The Four Main parts of KIOSK System Infrastructure:
KIOSK Client is the Application whice must be installed on the
KIOSK.
Also, it’s the most important part of KMS.
Kiosk Client is the Application Interface which user contact directly .
KIOSK Client integrate Devices on the KIOSK.
KIOSK Client can Restricted Access to operating system and computer desktop, and lockdowm all the possibilities to operate them.
Run with additional application modules to provide totally service for kiosks, including below.
1. Start Module：Check the settings of the local version update at startup, and reply the results of the updated version to the command module.
2. Monitor Module：Manage and control the status of the hardware on client, and reply the status result to the command module.
3. Commend Module：Receive, execute and command by middleware from KMS.
Middleware is the software for Communicate between the KISOK Client and KMS Host.
Remote control the client AP, order dispatch and response the status are all communicate by middleware.
The file or content setup by KMS would be deployed via middleware to the corresponding kiosk, and then perform or update the action.
KMS Provides the Management Platform. You can Easily Control all the Clients by KMS and Remote Monitor on the Server side.
KMS can easily manage all KIOSKs on the server through the background web interface. It is also the core of the KIOSK system.
Administrators can remote monitor, manage the remote kiosk by KMS, including operation flows, UI layout, multiple kiosk management, remote content update, monitoring and operating client AP and hardware and so on.
Task Queue is the Service that Process the Scheduled Task and Program Queue Jobs.
The task queue service processed by the
user is set up in the KMS.
(including Kiosk UI files,
applications, parameters, process settings, even business logics)
The user can set the delivery time of the contents. The content would be automatically fetched.
According to the setting of schedule, the service will obtain the work list and according to the client list by settings. Then process the task, the task will be delivered through middleware.
DEVICE SUPPORT
DEVICE SUPPORT

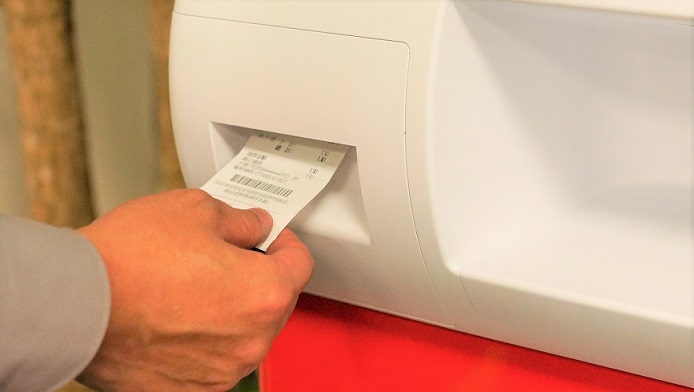

Receipt Printer
Thermal Printer

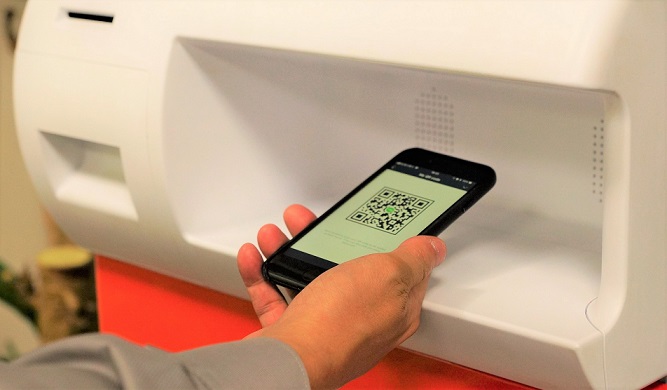

Reader
QRcode reader, barcode reader

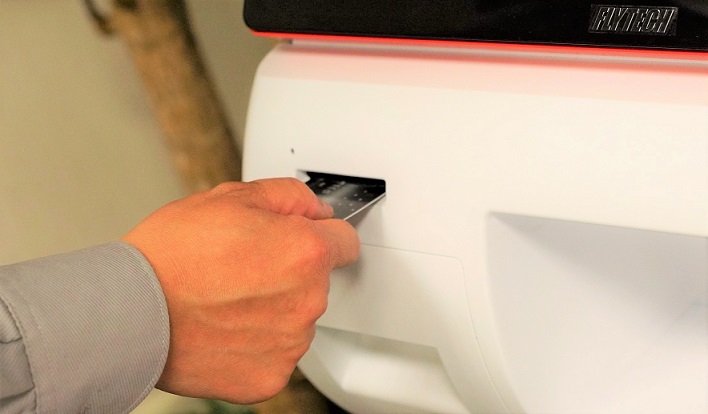

Smart card reader
Smart card reader

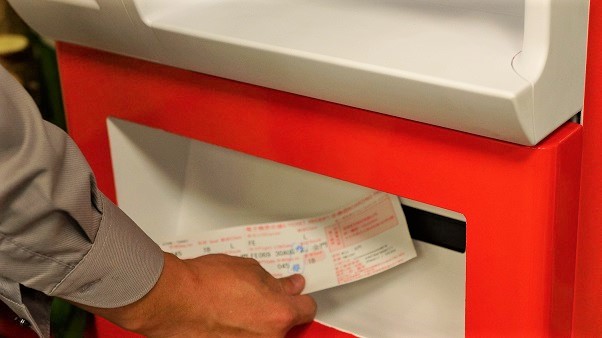

External Device Expansion
External Device Expansion
REMOTE MONITORING
REMOTE MONITORING
Remote Configuration
Configure commands and delivery on the server to notice kiosk restart, shutdown or reboot the AP.
Software Monitoring
Actively monitor whether the service is operating normally in real time. And also, you can understand the operation status of AP services on each kiosk through the dashboard.
RESTRICTED ACCESS
RESTRICTED ACCESS
Browser Lockdown
Lock and hide IE browser address bar, toolbar, and any js error message return to avoid connecting to external web pages and popping up an error message that would affect AP service.
Lock Users Out Of Accessing The Desktop And OS
Lock and hide possible ways to operate the desktop or OS. (ex.Ctrl+alt+delete, desktop taskbar, task manager windows...)
File Download Blocking
Preventing the dialog boxs from IE browser to download unknown files can avoid the software or files which contain viruses being downloaded maliciously.
SECURITY
SECURITY
限制檔案下載
防止IE瀏覽顯示對話框下載不知名文件，以避免被惡意下載含有病毒軟體或文件
自動修復應用服務錯誤
自動修復應用服務錯誤，重新啟動Kiosk AP服務
KIOSK UI
KIOSK UI
Beautiful and Intuitive User Interface
The interface developed by HTML5+JS is beautiful and easy to understand. Our UI replaced the traditional one, it is more flexible to develop by Web. And also, the front-end operation interface and multimedia effects can be simply developed according to customer needs.
Integrate Peripheral Devices
The system status of peripheral devices can be detected through KMS system, and easily integrated into the front-end operation interface, so that users can understand the current system environment.

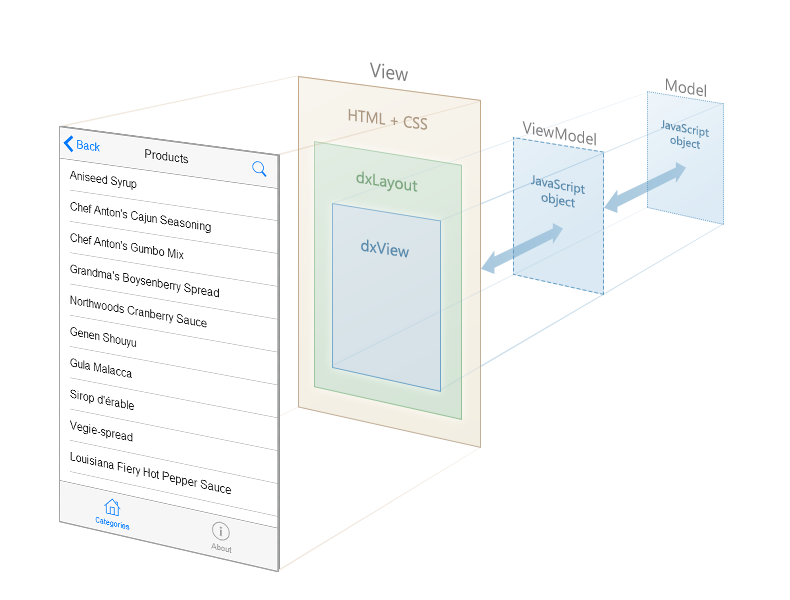

SPA Architecture and No Need to Wait for Loading
Front-end interface uses SPA technology that makes user will not see the waiting screen. Users will not feel any crash when they operate kiosk.
No Error Occurs
No application errors or network errors will occur.
KMS Platform
KMS Platform
Dashboard
Clearly show number of group, number of connected kiosk, number of unconnected kiosk, update time, and the result messages of the KIOSK Client on dashboard.
Group Management
Group management can assort kiosk to make them more convenient inquiry and management.
Through the group setting feature, the specified files can be sent to the KIOSK in the corresponding group for collective update at the same time. This can greatly reduce the lengthy work time of IT managers to update kiosk one by one currently.
Device Management
Device management can record detailed information of peripheral devices, that makes it easier for IT managers to separately query and manage peripheral devices.
KIOSK Management
KIOSK management can record detailed information of each KIOSK, that makes it easier for IT managers to query and manage KIOSK status separately.
Client Event Logs
If there is a system abnormality or hardware and peripheral operations abnormality, the log file will be reported, and the platform will automatically switch to the abnormal state description, so that the IT managers can understand the offline situation and carry out follow-up troubleshooting.
Task Schedule Management
KMS platform can sent the update files to the appointed KIOSK client for software version update.
